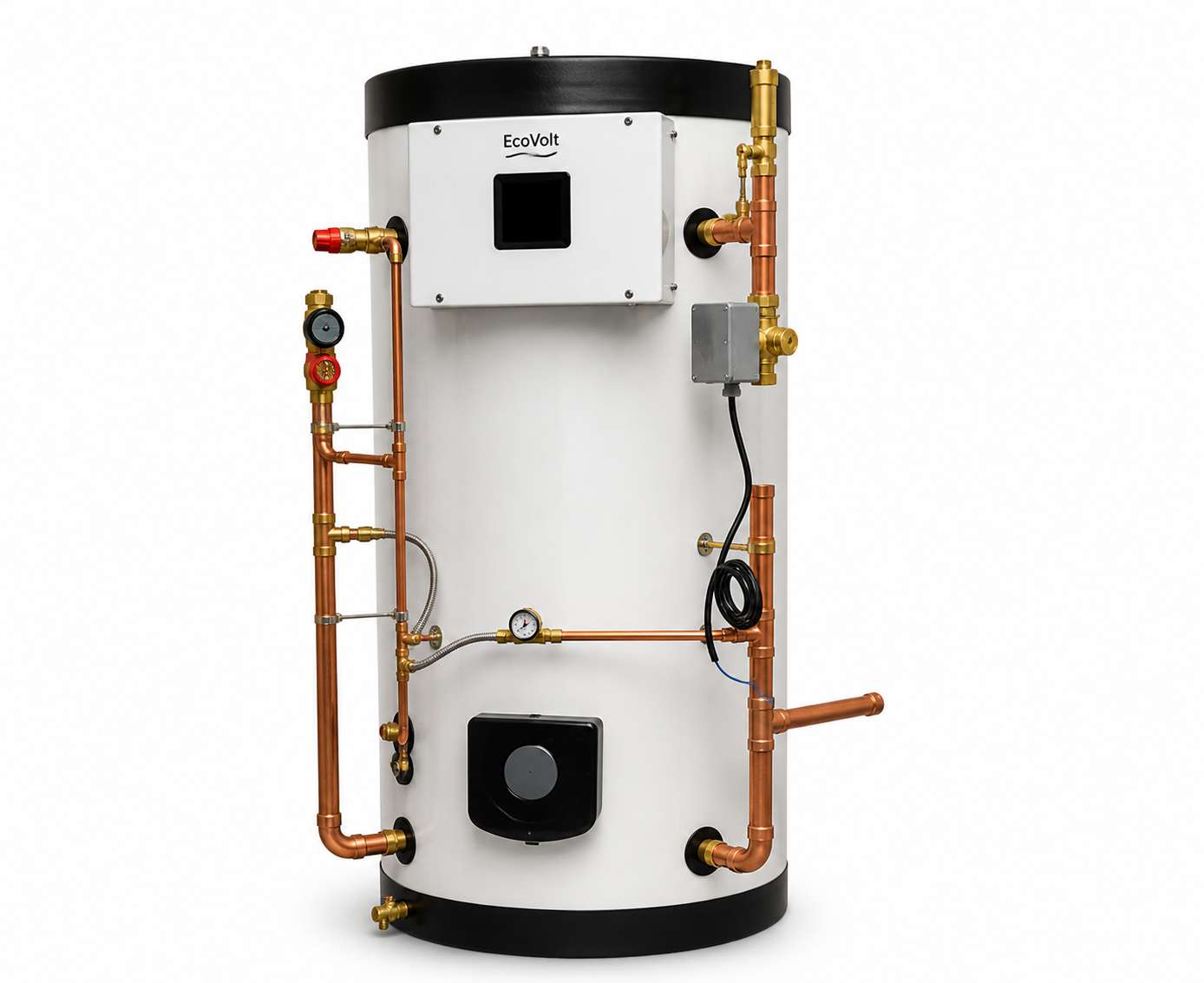

The EcoVolt 200L Pre-Plumbed Heat Pump Cylinder is a high-efficiency domestic hot water cylinder designed specifically for heat pump applications. Engineered for rapid installation and reliable performance, the pre-plumbed design integrates essential hydraulic and control components into one compact unit, significantly reducing installation time and on-site complexity.

Key Features:

– Pre-Plumbed Design:
Supplied with integrated hydraulic components including wiring centre, 3-port valve, filling loop, immersion heater, temperature probe, and inlet control group for faster and simplified installation.

– Optimised for Heat Pumps:
Designed specifically for low-temperature heat pump systems, ensuring efficient domestic hot water generation and system compatibility.

– High Performance Coil:
Large 3.75m² coil surface area maximises heat transfer efficiency and improves hot water recovery times.

– Energy Efficient Operation:
ERP Rating B with low standing heat losses to help reduce energy consumption and operating costs.

– Compact Footprint:
Slimline 570mm diameter allows easier installation in utility rooms, plant rooms, and modern residential developments.

– Integrated Safety & Control Components:
Includes T&P valve, automatic air vent, drain cock, immersion heater, and heat pump controller connection points for complete system integration.

Technical Specifications:

– Capacity:
200 Litres.

– Dimensions:
570mm diameter × 1260mm height.

– Weight:
43kg.

– Standing Heat Loss:
1.89 kWh/24hrs.

– Standing Loss:
79W.

– ERP Rating:
B.

– Maximum Operating Pressure:
6 bar.

– Immersion Heater Rating:
3kW.

The EcoVolt HP-PP200 is ideal for residential heat pump installations requiring a compact, efficient, and installer-friendly hot water solution. Its pre-plumbed configuration simplifies commissioning while delivering dependable domestic hot water performance.
